Parametric Pickup Fusion360 File
Purchasing this item will give you access to the fully parametric Fusion 360 design for making custom pickups using 3D printing and PCBs. It includes both the mechanical model as well as the PCB files.

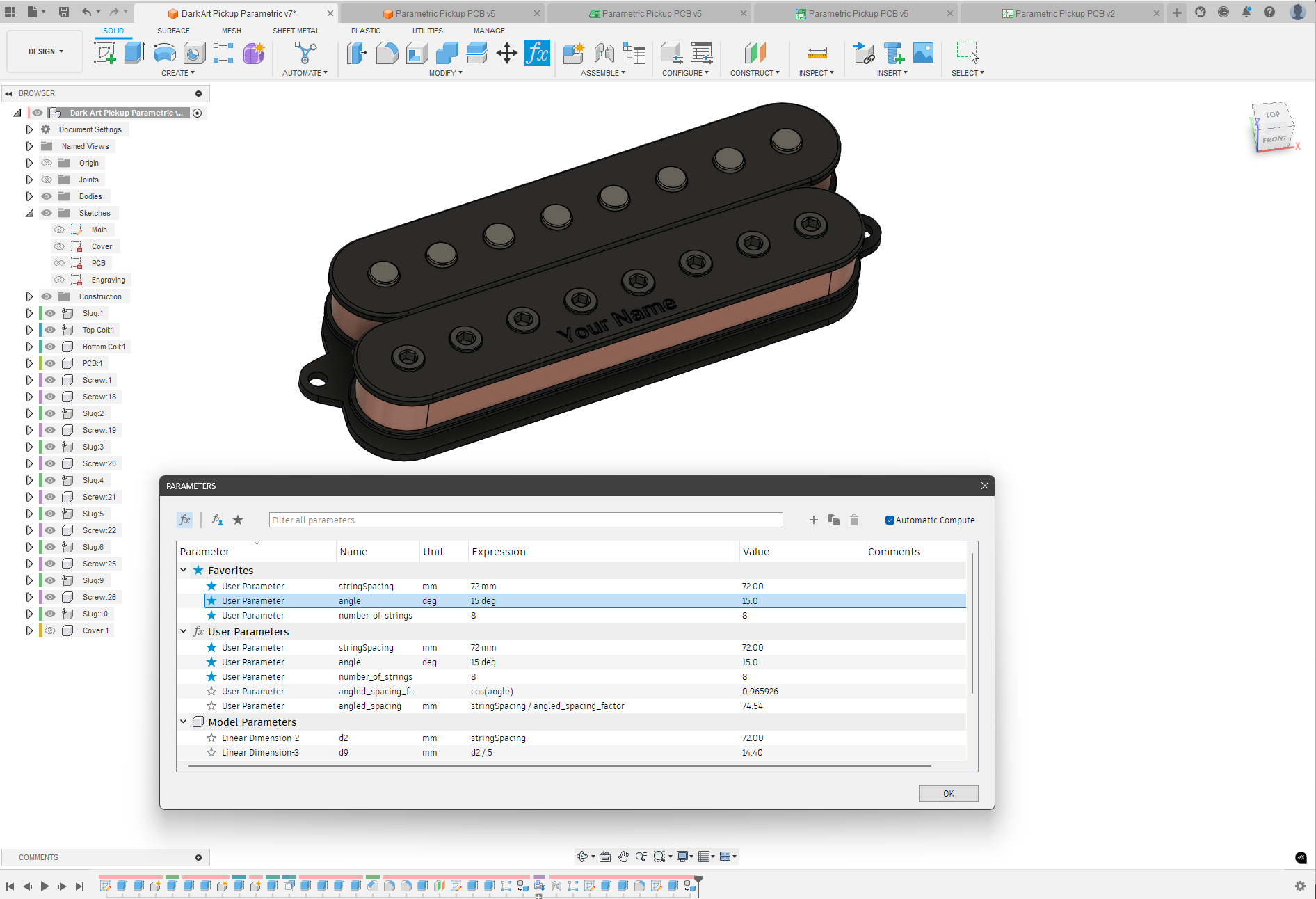

All you will have to do is input the string spacing, number of strings, and angle. Then the model will automatically update. To get the PCB you will have to manually pull the latest mechanical model from the 3D PCB workspace and then push it to 2D PCB. After that you can export the Gerber files needed for PCB manufacturing.
Buying this item gives you the right to use and modify the design for your projects, including selling any pickups you make. However, you may not share the files with any 3rd party.
The files are provided as is and Dark Art Guitars takes no responsibility for any incompatibilities.
